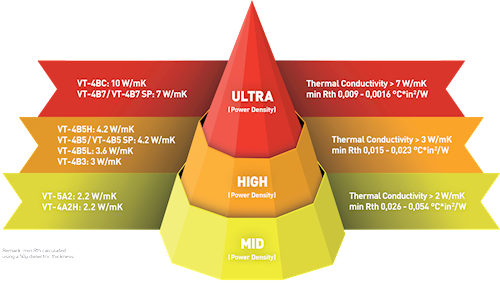

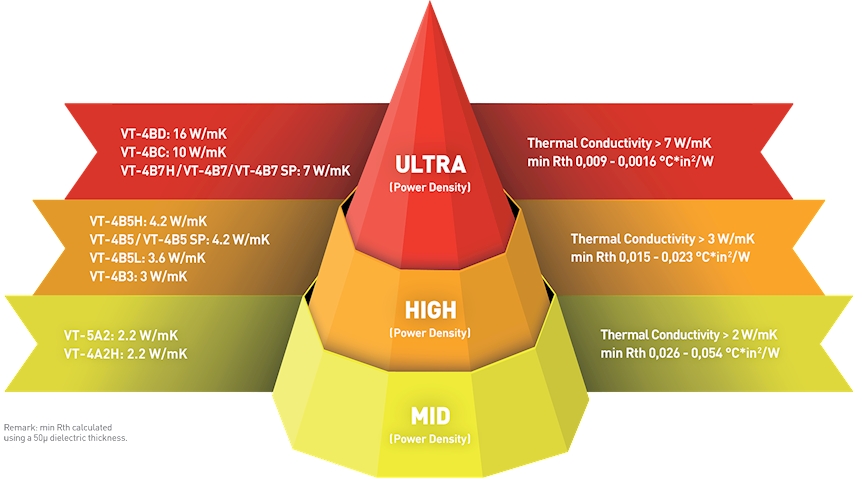

tec-thermal IMS Series: aluminum base layer; ceramic filled, non-reinforced dielectric

Versatile choice of formable substrates, selective dielectric and conductivity from 1.0 to 10.0 W/m.K

Ventec's IMS (Insulated Metal Substrate) families, laminates and prepregs for multilayer PCBs, leverage innovative formulas for excellent thermal performance. Formable VT-4B1 and selective-preference VT-4B5SP extend choice and design freedom even further.



Product Name Industry Approval Description
VT-4B7 SP IMS, Non-Glass, 7W/mK
VT-4B7 IMS, Non-Glass, 7W/mK
VT-4B5 SP IMS, Non-glass, 4.2W/mK
VT-4B5H Metal Base Laminate
VT-4B5L Metal Base Laminate
VT-4B5 IMS, Non-glass, 4.2W/mK
VT-4B3 IMS, Non-glass, 3W/mK
VT-4B1 IMS, Non-Glass, Bendable, 1W/mK
VT-5A2 (tec-thermal 5) IPC-4101E High Tg, High Thermal Conductivity laminates & prepreg
VT-4A2H PP (tec-thermal 4) Thermally conductive Laminates & Prepreg
VT-4A2H IMS (tec-thermal 4) Thermally conductive IMS
