tec-thermal IMS Series: aluminum base layer; ceramic filled, non-reinforced dielectric
Versatile choice of formable substrates, selective dielectric and conductivity from 1.0 to 10.0 W/m.K
Ventec's IMS (Insulated Metal Substrate) families, laminates and prepregs for multilayer PCBs, leverage innovative formulas for excellent thermal performance. Formable VT-4B1 and selective-preference VT-4B5SP extend choice and design freedom even further.

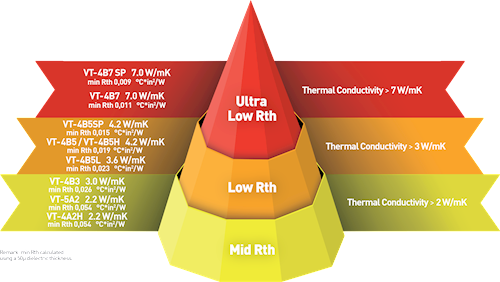

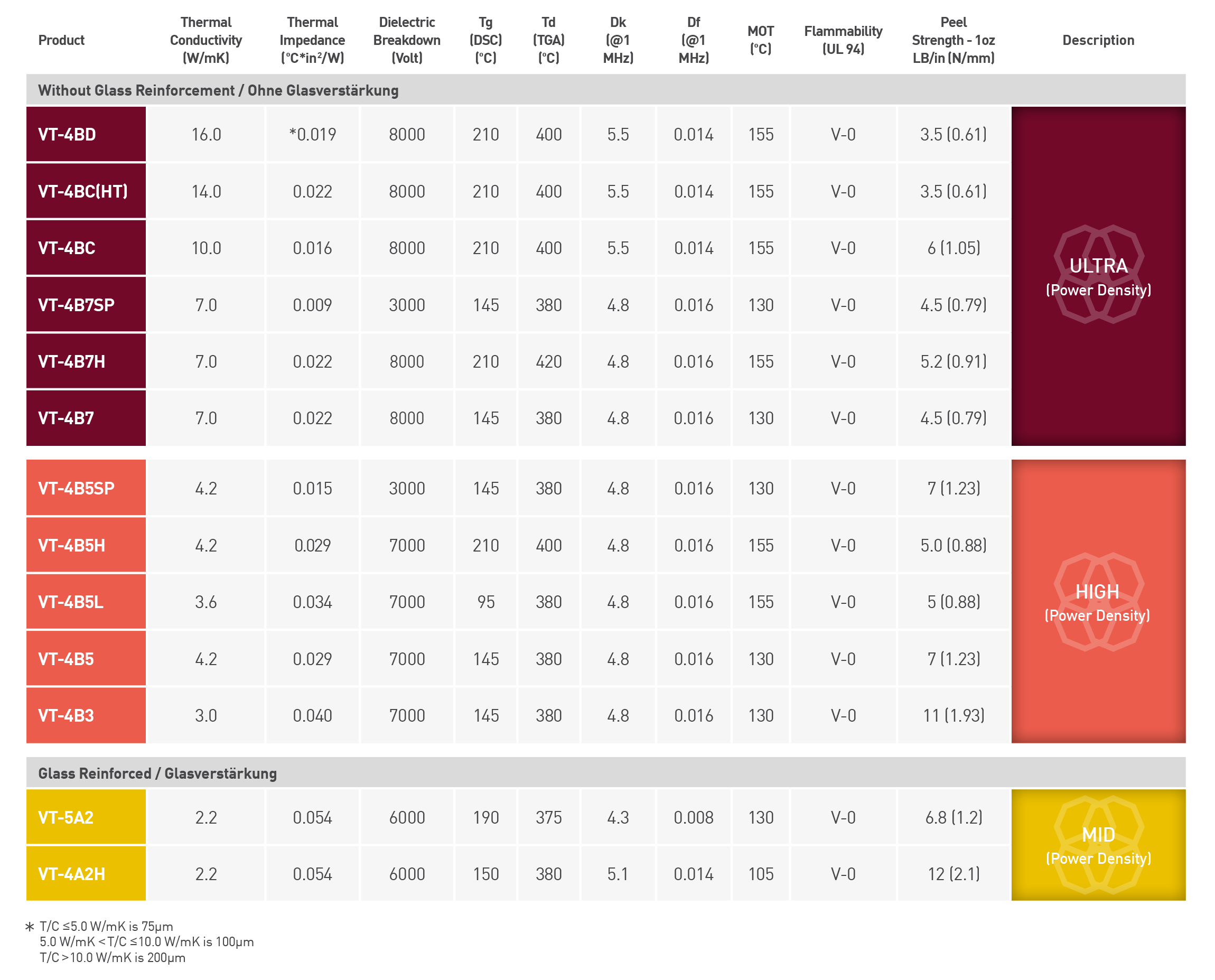

| Product Name | Industry Approval | Description |
|---|---|---|
| VT-4B7 | IMS, Non-Glass, 7W/mK | |
| VT-4B7 SP | IMS, Non-Glass, 7W/mK | |
| VT-4B5 SP | IMS, Non-glass, 4.2W/mK | |
| VT-4B5 | IMS, Non-glass, 4.2W/mK | |
| VT-4B (Copper Base) | IMS, Non-Glass, Cu-Base | |
| VT-4B3 | IMS, Non-glass, 3W/mK | |
| VT-5A2 (tec-thermal 5) | IPC-4101E | High Tg, High Thermal conductivity |
| VT-4A Series | IMS, Glass Reinforced | |
| VT-4A2H (tec-thermal 4) | Thermal conductive Laminates & Prepreg | |
| VT-4B1 | IMS, Non-Glass, Bendable, 1W/mK | |
| VT-4B5L | Metal Base Laminate | |
| VT-4B5H | Metal Base Laminate |
